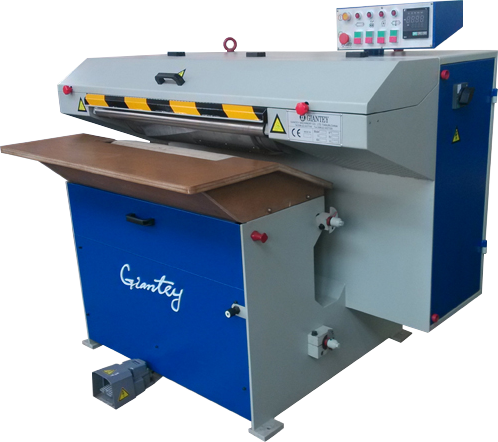

THROUGH-TYPE IRONING MACHINE GTI-70-80 -90-125
Through-type ironing machine GTI-70-80-90-125 is a large-scale double-face and fur processing equipment, it is GIANTEY-specially designed for wool-on lambskin processing, it combines the advantages of reciprocating-type and through-type from the two kinds of ironing equipment, our any existing ironing machine can not be compared with it, both speed and quality. A variety of large wool-on lambskin and fur can be continuously ironed by this machine, with both automatic or manual operation. The feed speed is adjusted by the controlled hydraulic motor, which is convenient and reliable.
The machine is equipped with a special conveyor belt and triangular support mechanism, conveyor belt is made of advanced and anti-high temperature chemical fiber, it is woven of barrel-like structure, ironed wool-on skin through the ironing roller is automatically sent out. According to the length of sheepskin hair size, operator can adjust the conveyor belt to the best rolling angle and right pressure, to ensure that the ironing effect to achieve the best. The ironing cylinder is made of anti-corrosive materials and contains 36 high-quality armored heat-resistant heating tubes, the operating temperature is automatically controlled by the electronic temperature control meter, so that the hot ironing cylinder is always kept at the right level of the working temperature。
GTI type series of auto- ironing machine by manual operation can also be automatically changed to through -type, it is well-designed for fast-working, high efficiency and reliable safety, it is the first choice among ironing machines for large and medium-sized fur and double-face processing enterprises.
Technical data：
| Items | Unit | Parameter |
| Operator | person | 1 |
| Driving method | Electric and hydraulic | |
| Effective working width | mm | 70，80，90，1250 |
| Production rate | skins/hour | 100 – 260 |
| Max. heating power | kW | 16.2-31.5 |
| Ironing cylinder driving power | kW | 7.5-15 |
| Conveyer power | kW | 0.37-0.75 |
| Motor fan | kW | 3 |
| Working area | m | 2.60×2.16 |
| Net weight | kg | 1610-2230 |
| Gross weight | kg | 1760-2730 |
| Total power | kW | 27- 50.65 |
